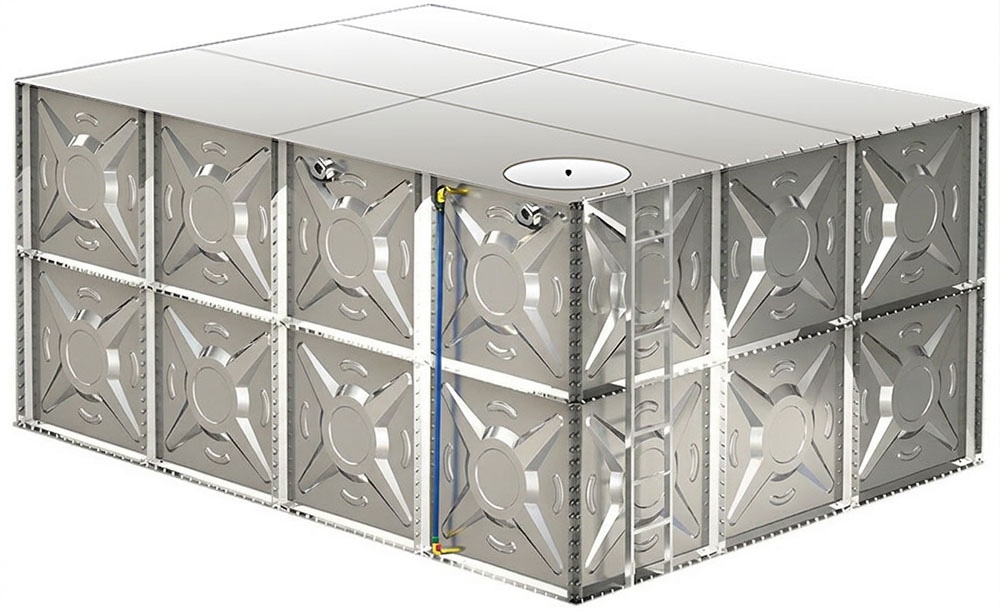

Steel Water Tank

These are water storage tanks produced as modular panels under high pressure presses using (AISI 316 L) quality chrome steel material.

It is produced in the form of panels by applying high pressure with first class materials, under the conditions stipulated by public institutions such as Ministry of Environment and Urbanization, TOKİ and CE, TSE quality standards.

All parts are produced in our factory and the modules are processed in high pressure presses, thus providing strength. Since it does not require any welding process, there is no risk of swelling or explosion and it is long-lasting.

Why Steel Water Tank?

  • All parts of modular tanks are produced in accordance with hygiene conditions. No algae or bacteria will form in the stainless (AISI 316) tank.
  • The panels are given strength with high pressure presses. There is no risk of swelling or explosion.
  • Tank assembly is done with special bolt tightening machines. It can be easily disassembled and installed in another location if desired. It can be easily mounted on the preferred ground, on high platforms, on the roof, on towers and in any desired location.

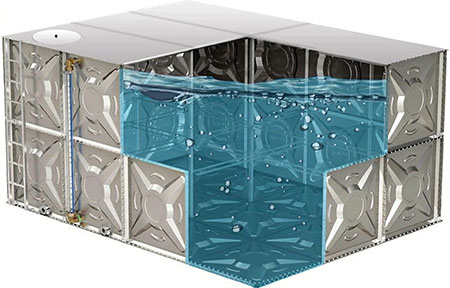

Paslanmaz Su Deposu
Paslanmaz Su Deposu
  • 1. Panel dimensions are 1080 mm x 1080 mm.
  • 2. Material thickness is between 1.2 mm and 5 mm
  • 3. If the necessary detail is added to the base concrete, it will completely remove the water at the bottom of the tank. There will be the opportunity to unload
  • 4. Sealing in steel tanks is provided by EPDM gaskets
  • 5. Modular steel water tanks can be installed on the tower.

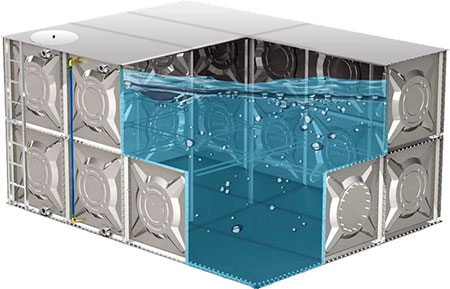

  • 6. The tank can consist of 2 or more parts by placing a separator inside the tank

Water Tank Layout and Capacities

PDF Datasheet

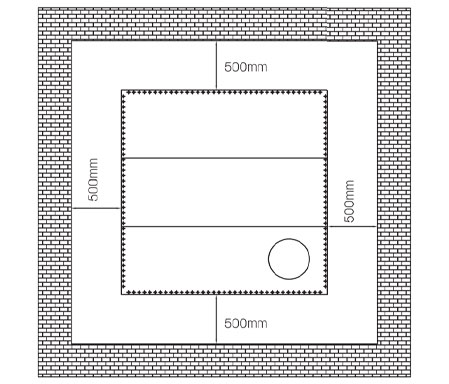

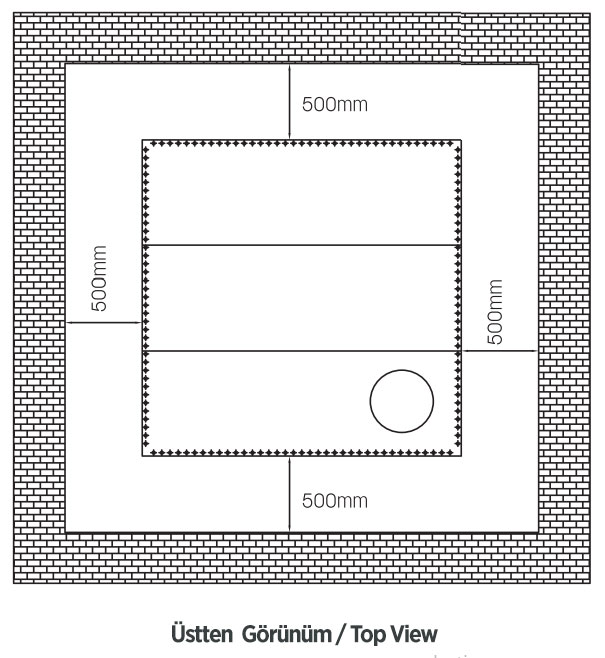

Top View
Layout Diagram

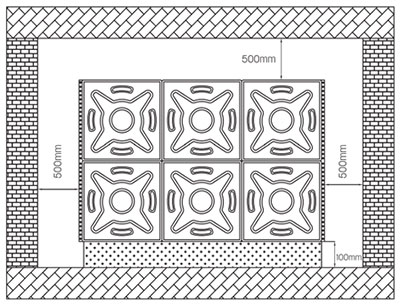

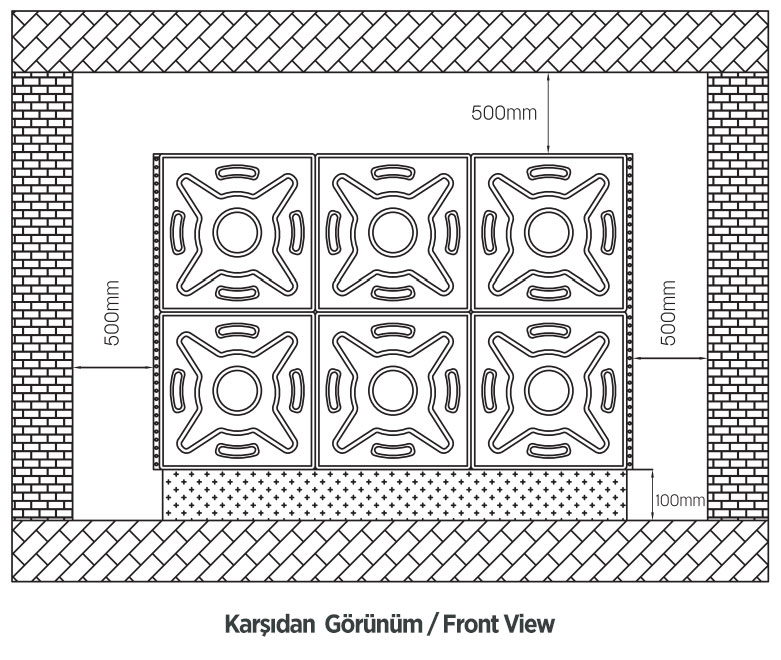

Front View
Layout Diagram

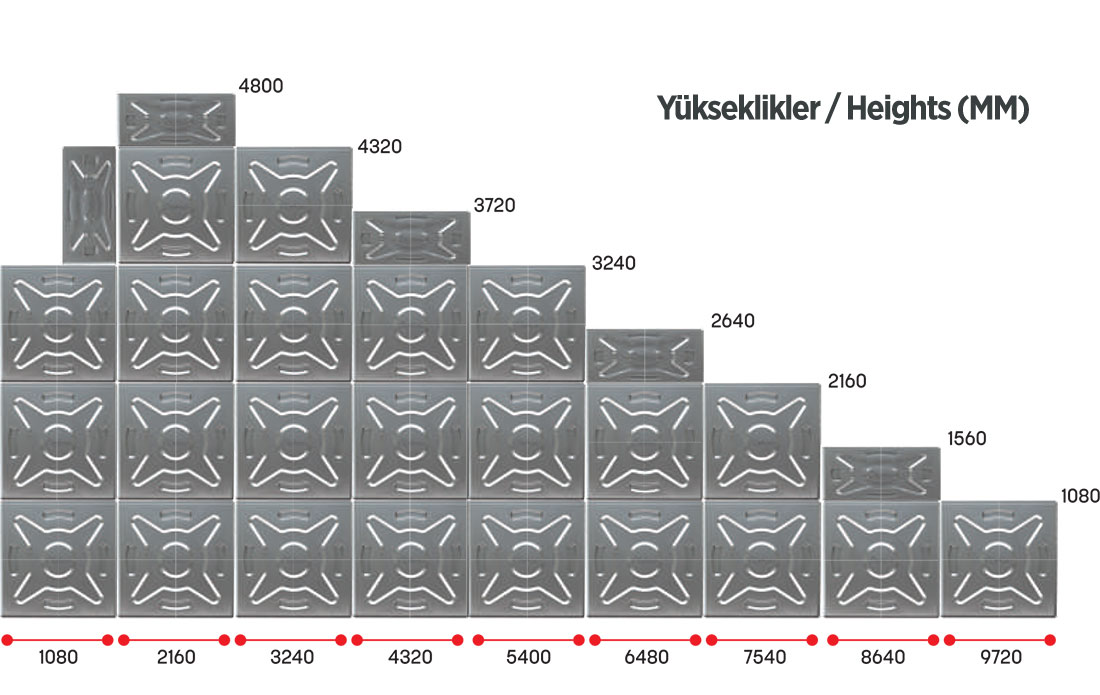

Heights
Configuration

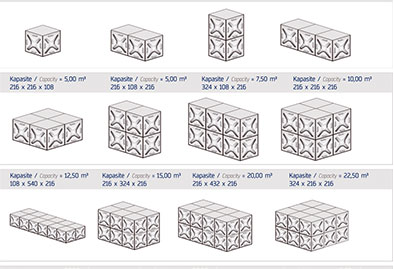

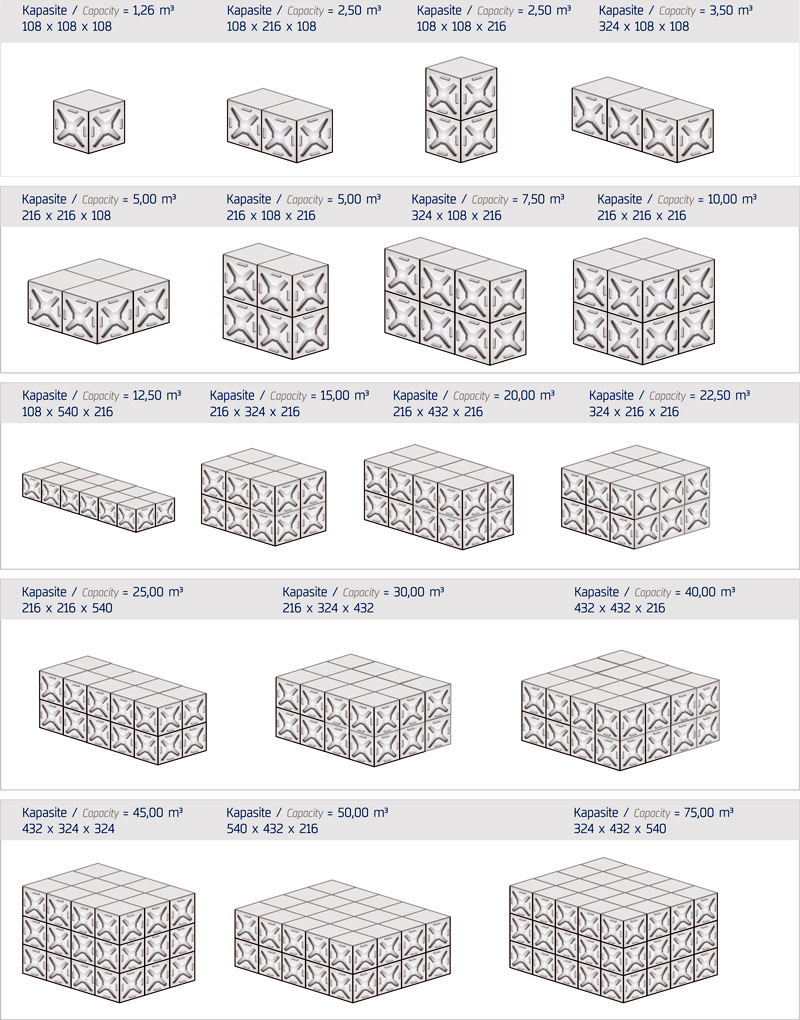

Capacity & Size Perspectives
Capacity Perspectives

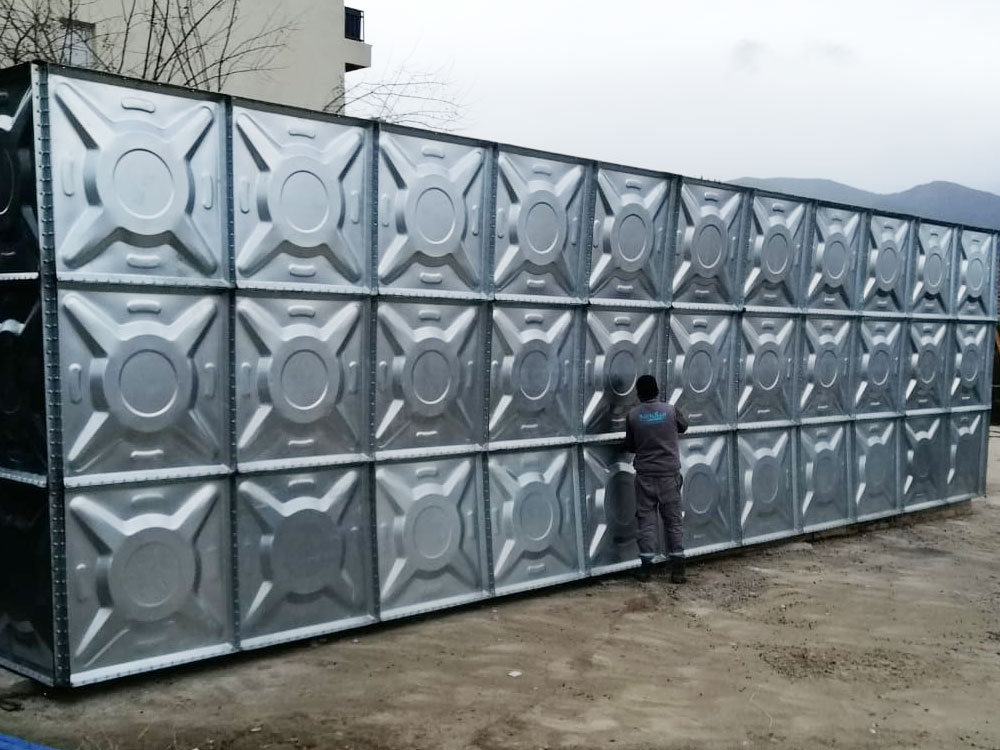

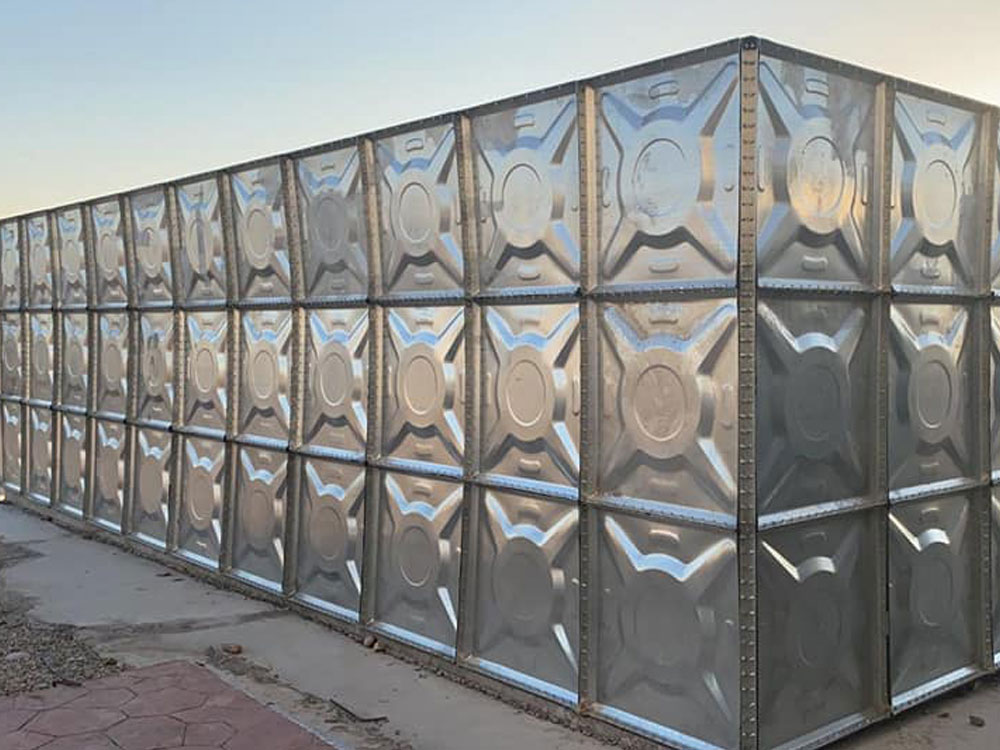

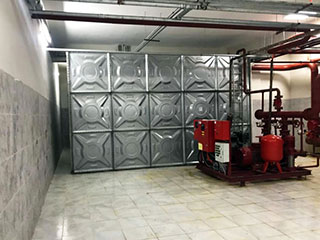

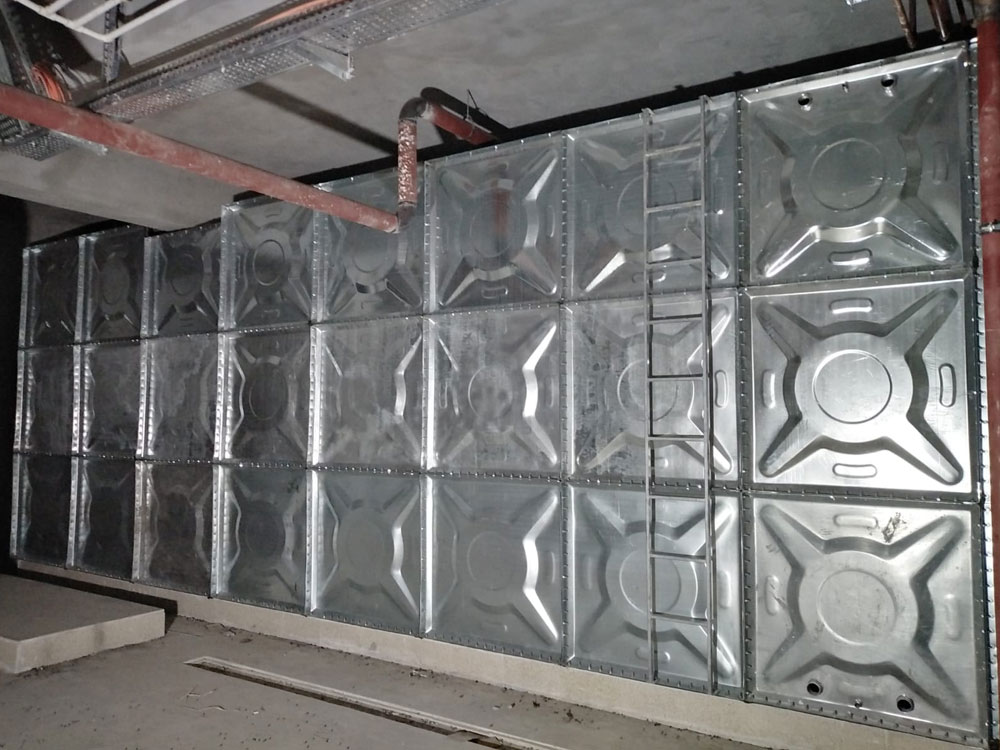

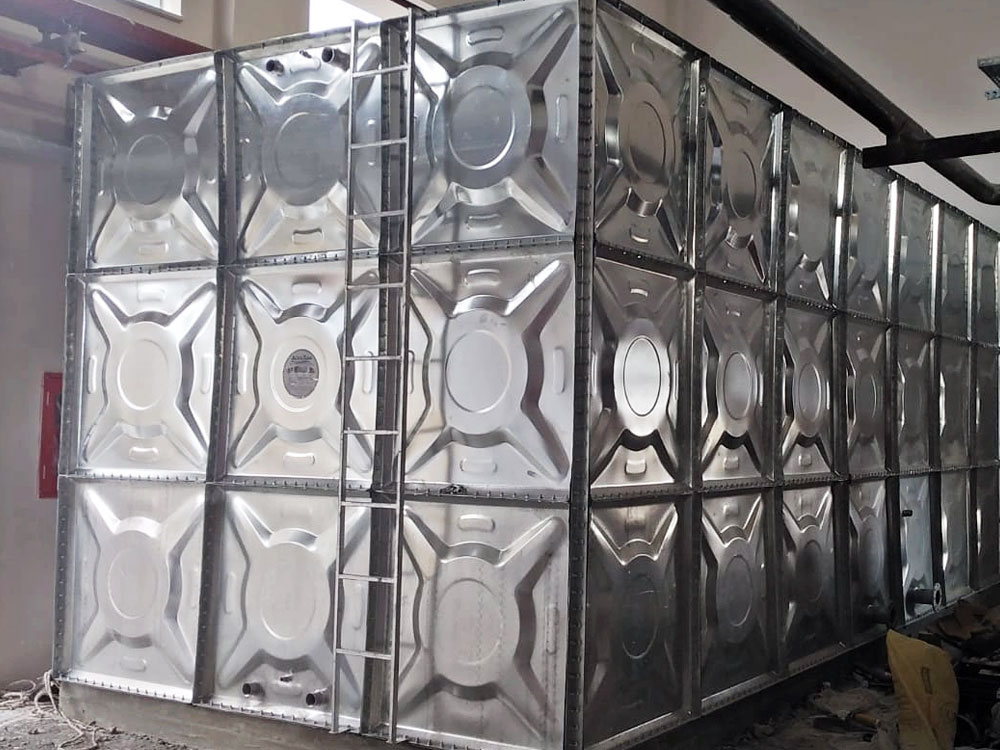

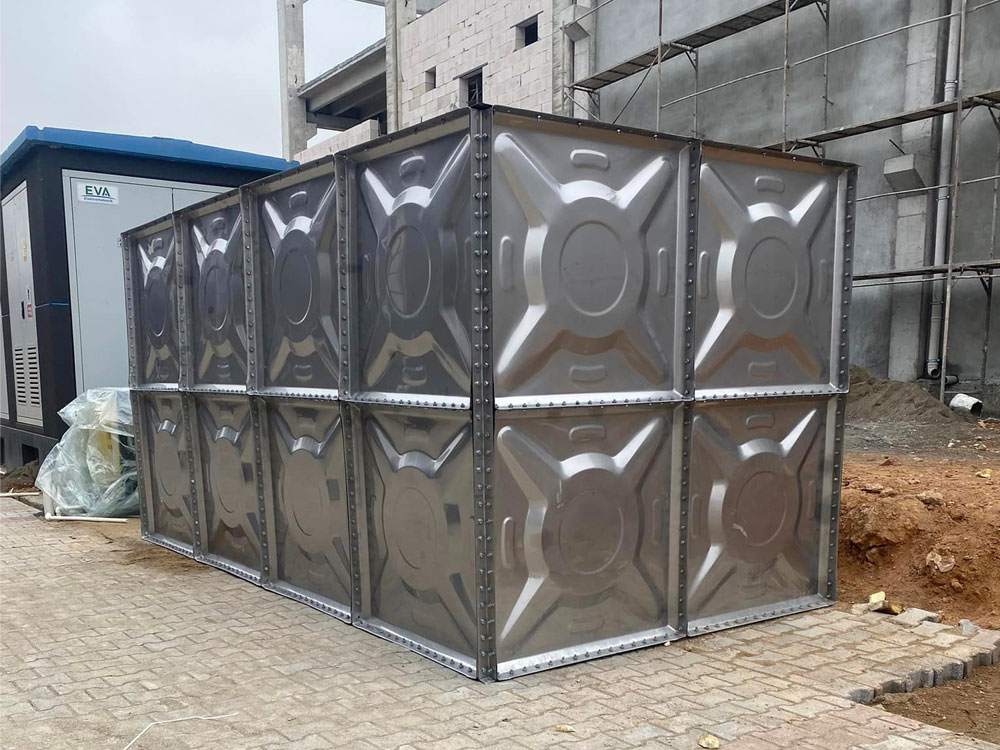

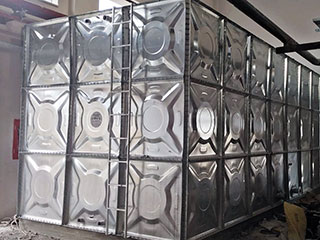

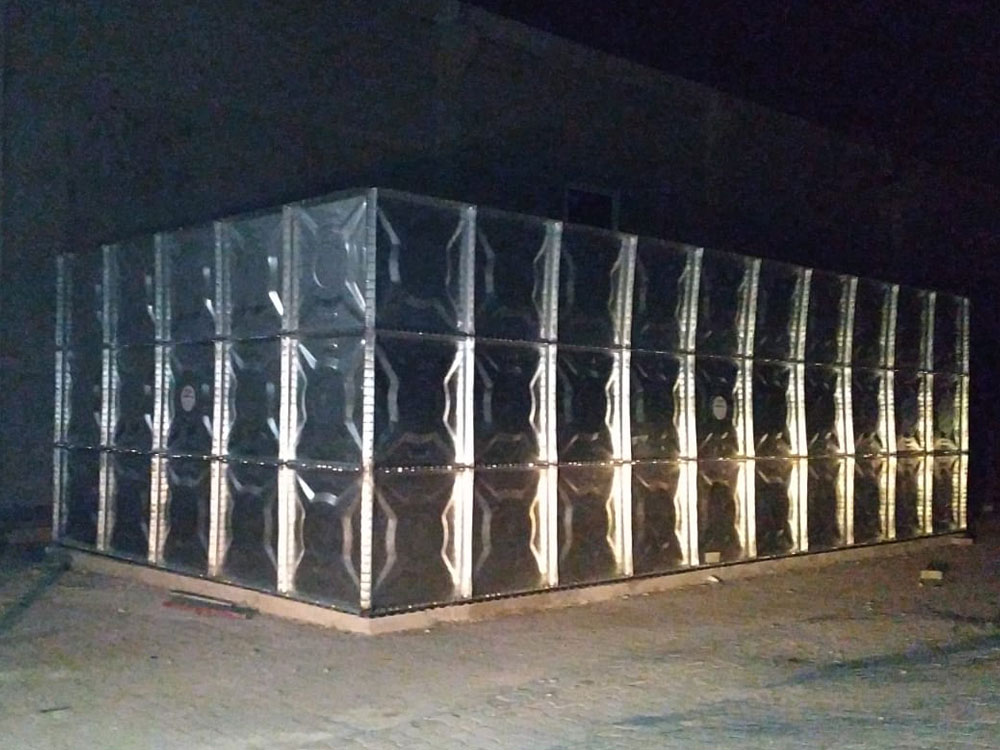

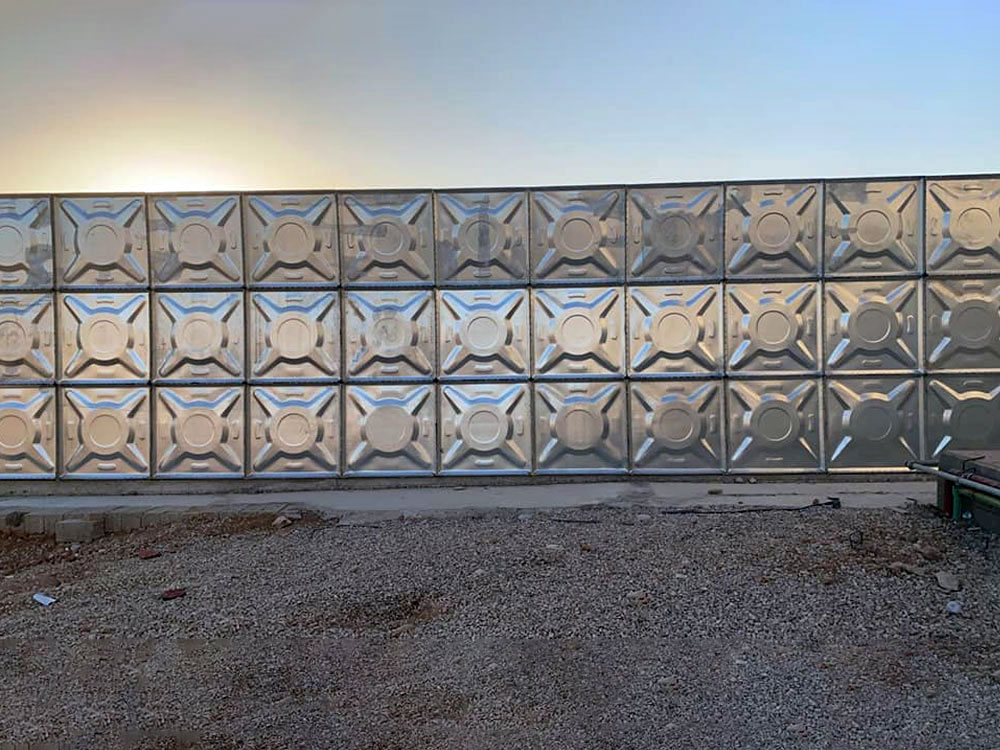

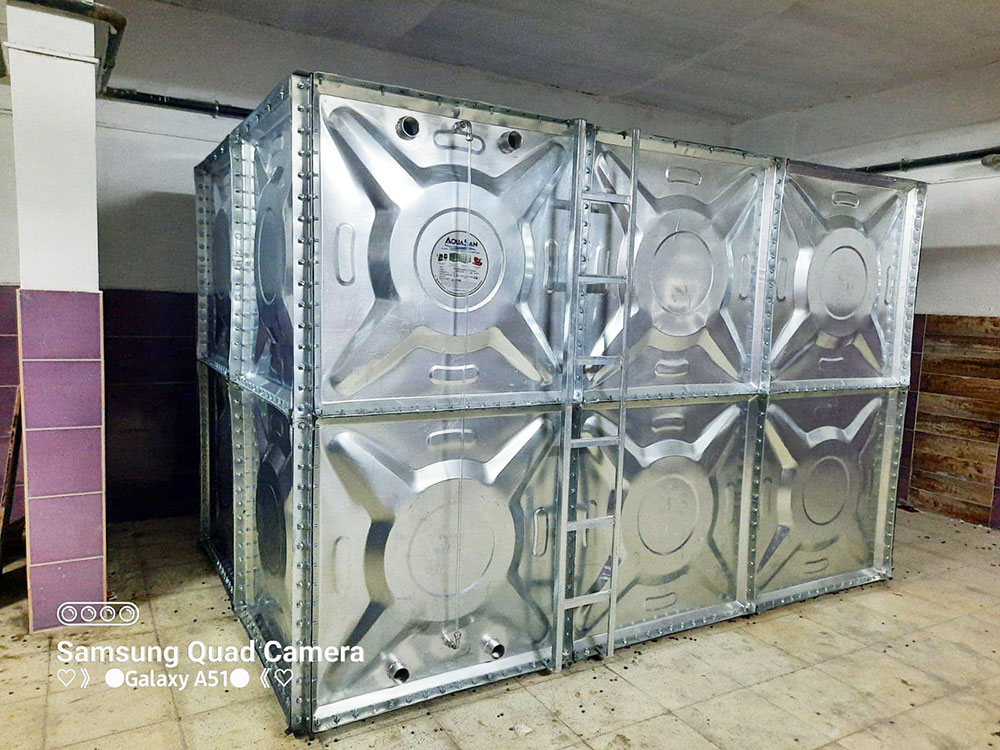

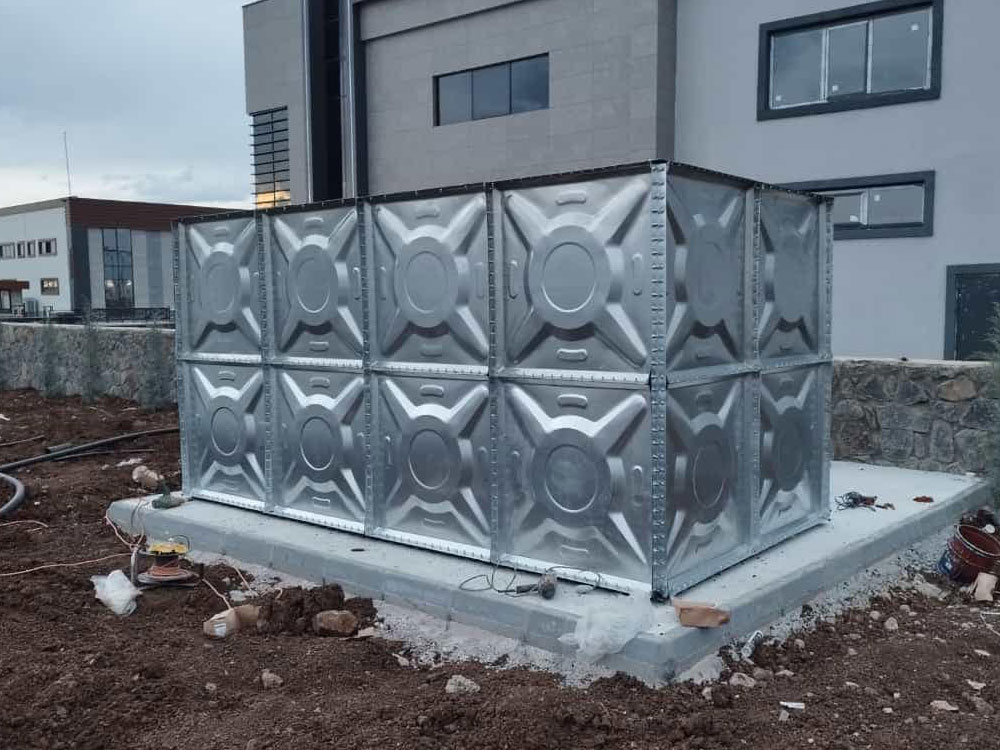

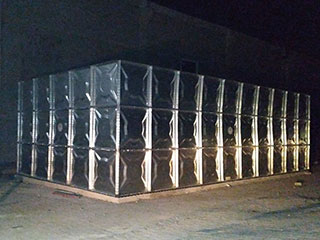

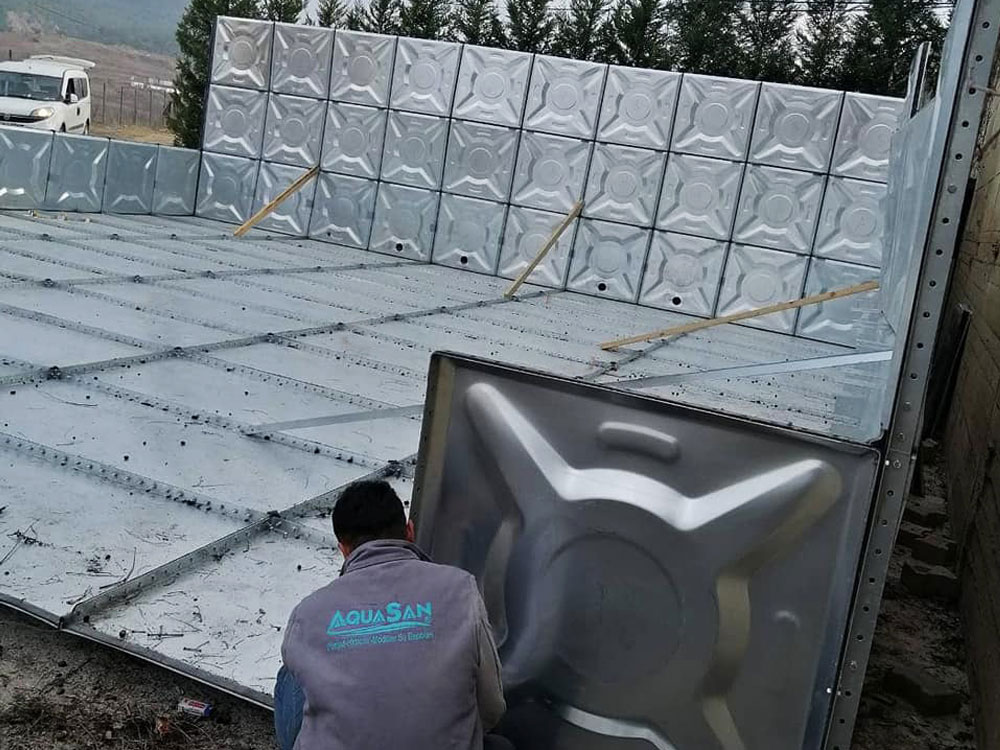

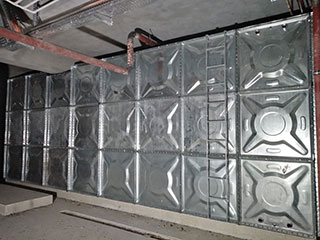

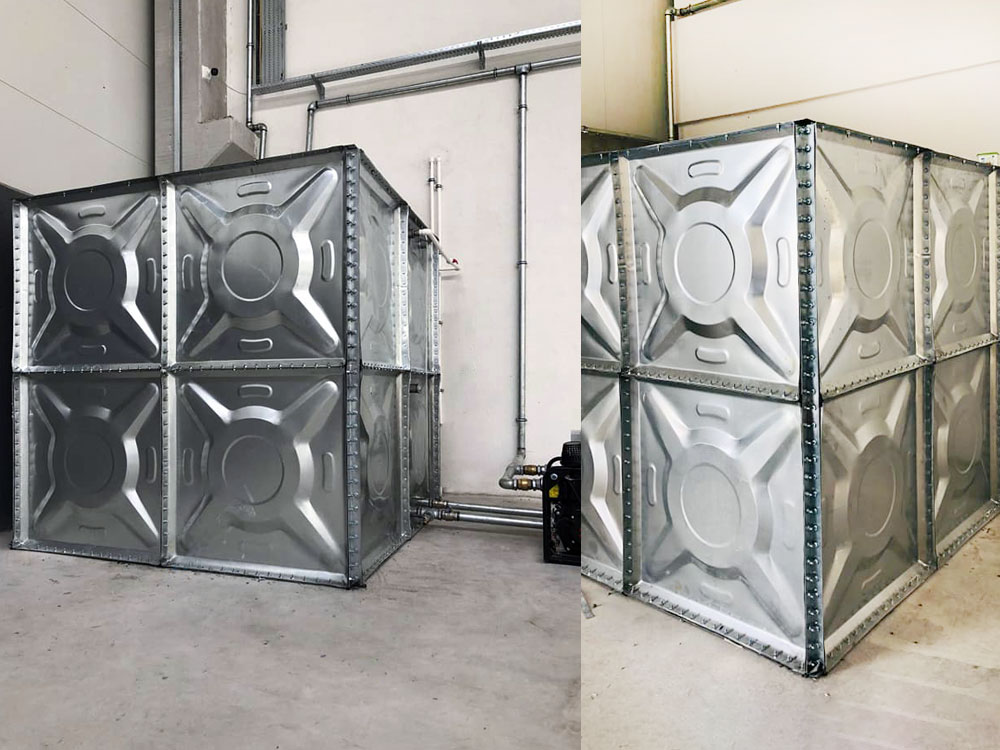

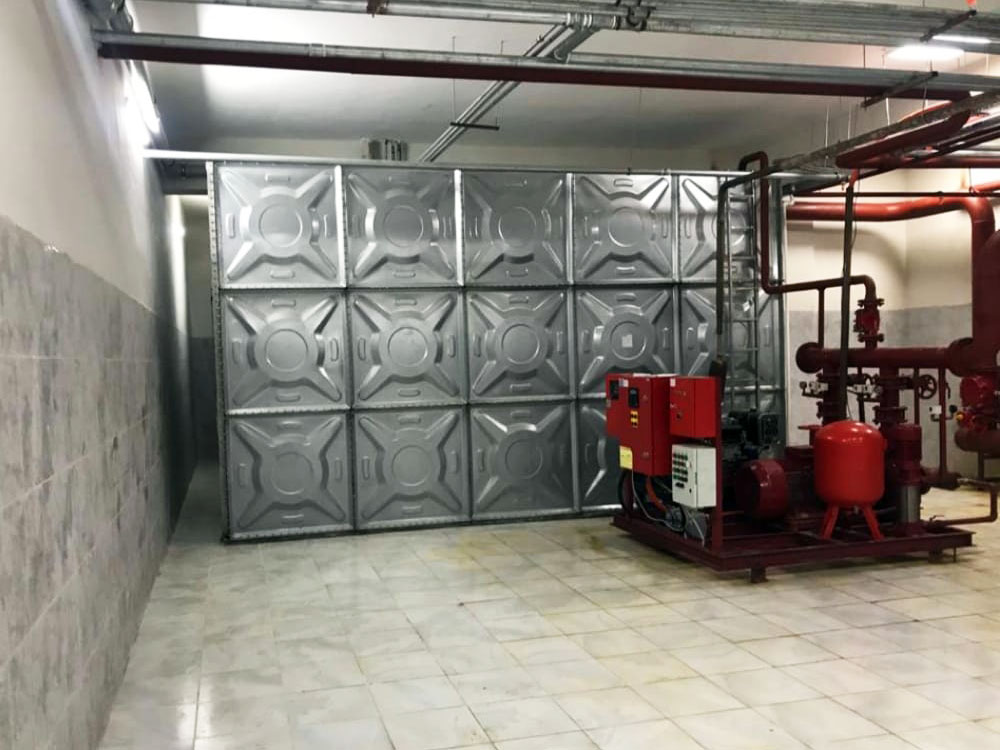

Steel Water Tank Some Installations

  • AquaTank Sectional Water Tank
  • AquaTank Sectional Water Tank
  • AquaTank Sectional Water Tank
  • AquaTank Sectional Water Tank
  • AquaTank Sectional Water Tank
  • AquaTank Sectional Water Tank
  • AquaTank Sectional Water Tank
  • AquaTank Sectional Water Tank
  • AquaTank Sectional Water Tank
  • AquaTank Sectional Water Tank
  • AquaTank Sectional Water Tank
  • AquaTank Sectional Water Tank

Get price offer and info for your water storage projects.

You can schedule an online meeting with our experts and get information about sectional water storage technologies and get projects and price quotes.
