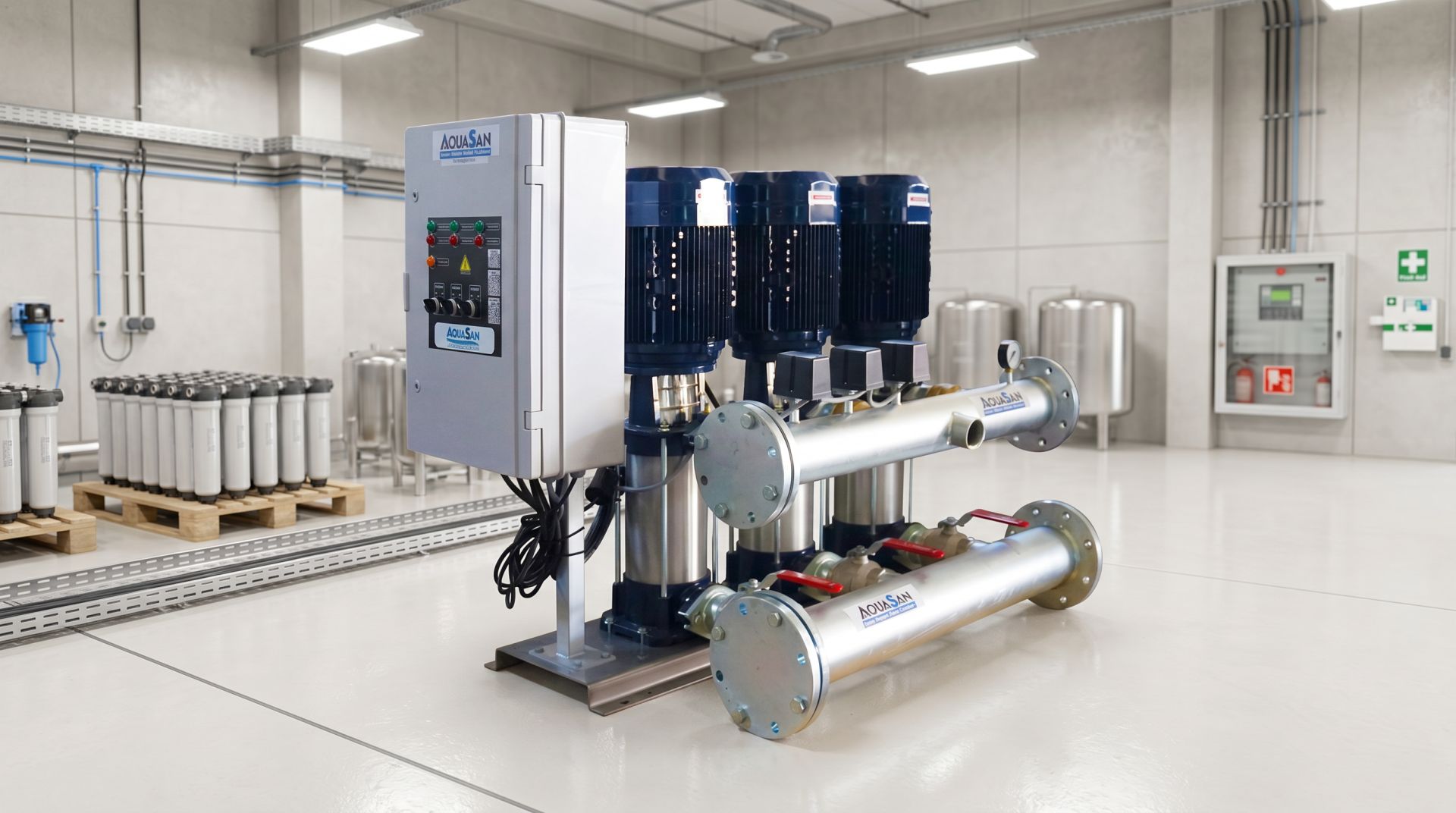

Triple-Pump Booster Set
AQUAPUMP

Triple-Pump Booster Set

  • Standard: TS EN 733
  • Liquid Temperature Range: 20 – 60 °C
  • Ambient Operating Temperature: up to 40 °C
  • Max. Suction Head: 8 m
  • Max. Discharge Head: 170 m
  • Casing Pressure (Pmax): 10 – 16 – 25 bar
  • Sequential operation according to water demand.
  • Pump changeover after every run.
  • Pumps stop when there is no water at the suction.
  • Delay when the 2nd and 3rd pumps start.
  • Delay when the 2nd and 3rd pumps stop.
  • Phase-to-phase voltage can be read on the microprocessor display.
  • Faults can be read via the microprocessor.
  • All operating states can be viewed on the control panel.
  • Manual start switch on models above 5.5 kW.
DOCUMENTS →
AQUAPUMP

Capacity and Dimension Tables

Booster Type Motor (kW) D1-D2 A (mm) B (mm) H1 (mm) H2 (mm) S1 (mm) S2 (mm) S3 (mm) S4 (mm) S5 (mm)
3 x ASN 80-1005 3x0.75 2" - 1½" 85 202 600 627 270 320 12 800 720
3 x ASN 80-1006 3x0.75 2" - 1½" 85 224 600 649 270 320 12 800 720
3 x ASN 80-1007 3x1.1 2" - 1½" 85 248 600 671 270 320 12 800 720
3 x ASN 80-1008 3x1.1 2" - 1½" 85 268 600 682 270 320 12 800 720
3 x ASN 80-1009 3x1.1 2" - 1½" 85 290 700 715 270 320 12 800 720
3 x ASN 80-1010 3x1.5 2" - 1½" 85 312 700 740 270 320 12 800 720
3 x ASN 80-1011 3x1.5 2" - 1½" 85 334 700 762 270 320 12 800 720
3 x ASN 80-1012 3x1.5 2" - 1½" 85 356 700 784 270 320 12 800 720
